THERMELT 861 HV Experimental
增强流性动、附着力
THERMELT 861 HV is a pure copolymer polyamide hot melt resin, non reactive and solvent free, specially designed for Low Pressure Molding applications.
- Mainly Industrial applications
- Standard molding resins
- Flammability UL94 : V0
(UL file E116659)
分类：
描述
TDS
SDS
UL

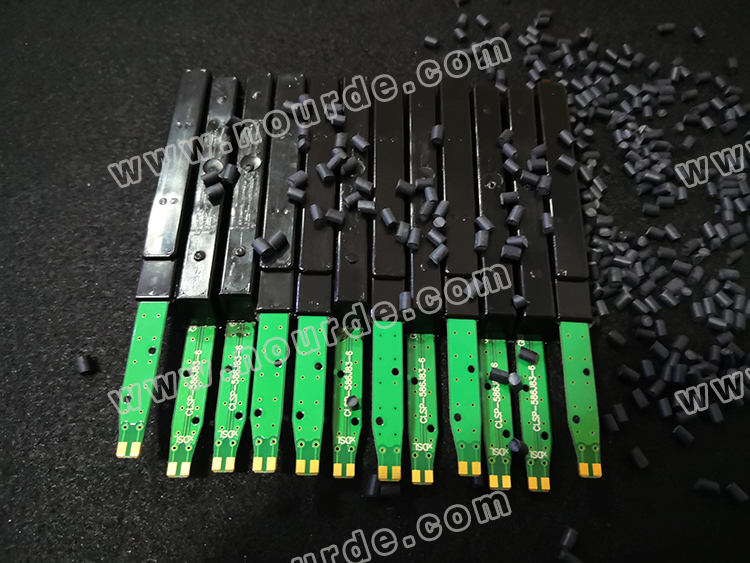

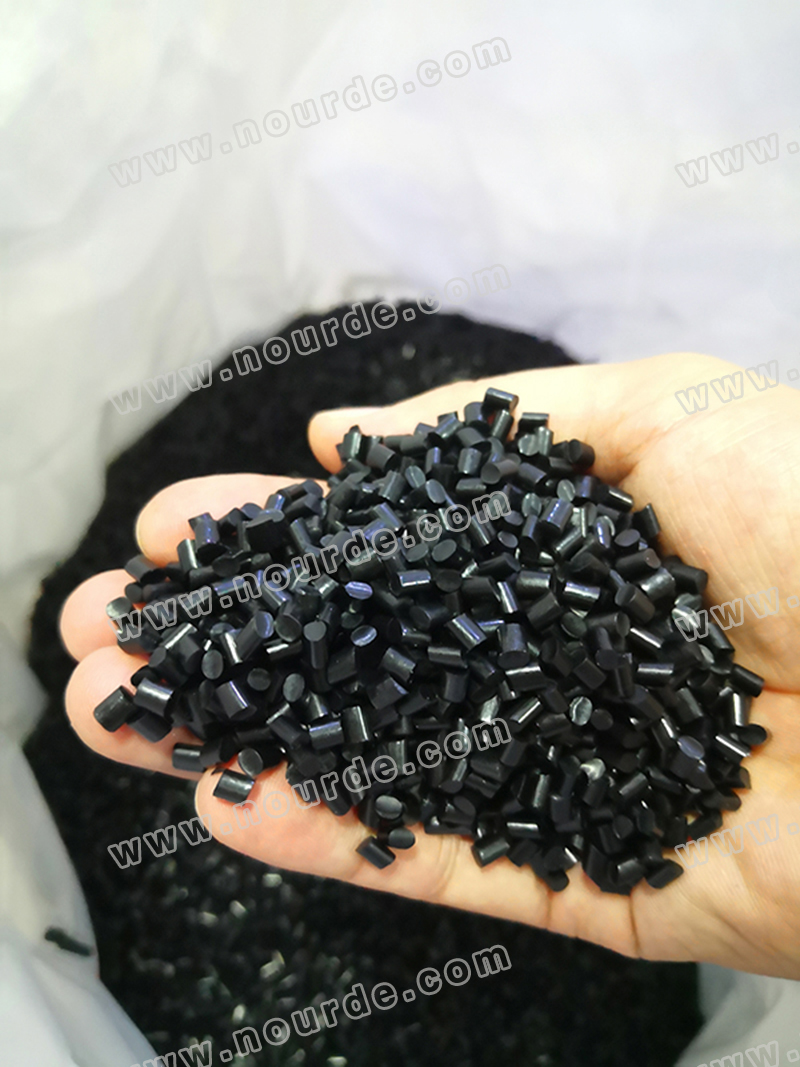

实物

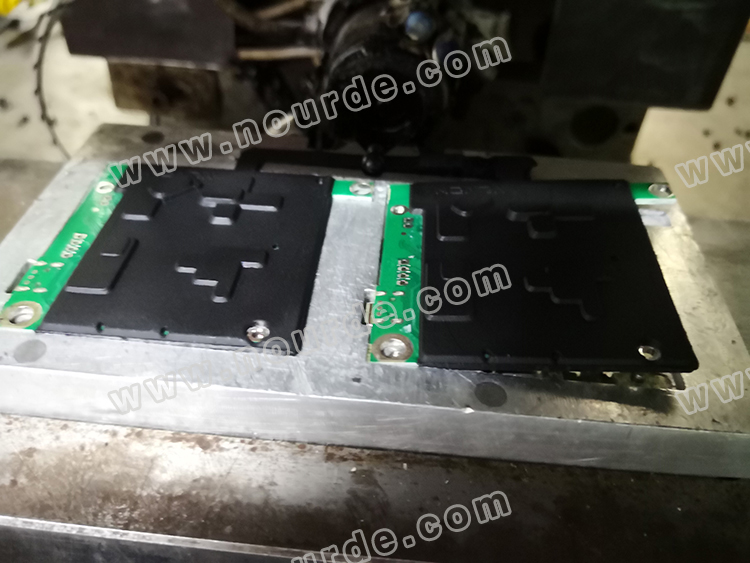

应用
THERMELT 861 HV Experimental
产品特性：
增强流性动、附着力
THERMELT 861 HV is a pure copolymer polyamide hot melt resin, non reactive and solvent free, specially designed for Low Pressure Molding applications.
- Mainly Industrial applications
- Standard molding resins
- Flammability UL94 : V0
(UL file E116659)
| 物理性能 | 典型值 | 范围 |
| Technology 基本组成 | Polyamide聚酰胺 | |
| Appearance 外观颜色 | Black 黑色 颗粒 | |
| Application应用 | Molding低压成型 | |
| Operating Temperature, ℃ 耐温 | -40 to +125 | |
| Flammability UL94 阻燃 | V-0 | |
| GWFI, ℃ 阻燃测试 灼热丝可燃性指数 |
960 | |
| GWTI, ℃ 阻燃测试 灼热丝起燃性温度 |
700 | |
| Viscosity Brookfield, Pa.s 黏度 | 10,000, @200℃ | 10,000 to 14,000 |
| Softening point, ℃ 软化点 | 160 | 155 to 166 |
| Water Content, % 含水率 | <0.2 | |
| Vicat temperature, ℃ 维卡温度 | - | |
| Glass transition, ℃ 玻璃化温度 | -30 | |
| Yield strength, Mpa 抗张强度 | 4.1 | |
| Strength at break, Mpa 断裂强度 | 4.0 | |
| Elongation at break, % 断裂延伸率 | 310 | |
| Density 密度 | ~1 | |
| Water absorption, % 吸水率 | 2.8 | |
| Hardness, Shore 硬度 | D38 | A90 |
| Melt Temperature Range, ℃ 熔胶温度 | 210 to 230 | |
| Mold Temperature Range, ℃ 模温范围 | 20 to 60 | |
| Drying Time, H 干燥时间 | 4-6 | |
| Drying Temperature, ℃ 干燥温度间 | 70 | |
| Processing Moisture Content, % 加工含水率 | <0.2 | |
| Transversal resistivity, ohms-cm 电阻率 | / | |
| Dielectric rigidity, KV.mm 介电强度 | / | |
| Relative permittivity, F.m 相对介电常数 | / | |
| Packaging 包装 | PE-包装袋, 净重 20 kg | |
| Commercial shape 形状 | Pellets 颗粒 | |
| Country of origin 产地 | France法国 | |
| Other其它 | ||
以上数值仅为代表性参考数值，不作为产品质量检验标准。针对有特殊要求的应用，在选择材料前请与供应商进行数据确认。
本网页中提供的产品技术信息仅供参考。它们会随不同的工况条件，如设备类型，材质等改变。
本网页中提供的产品技术信息仅供参考。它们会随不同的工况条件，如设备类型，材质等改变。
