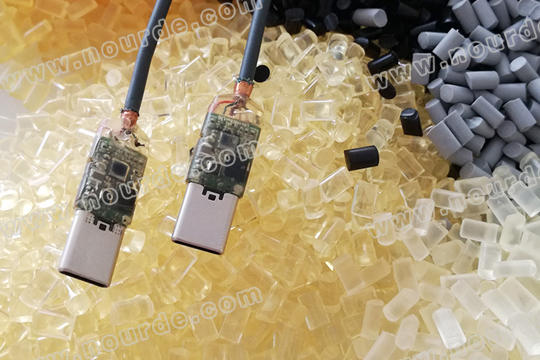

低压注塑材料
聚酰胺热熔胶 “Shunweimelt”
该系列产品是以天然脂肪酸、二聚酸为基础的热塑性热熔胶，对ABS，PBT，PVC等塑料具有良好的粘接性能，产品具有低温柔韧性、应用温度范围广以及优异的成型特性。
用于低压注塑成型的封装材料是基于自然脂肪酸、二聚酸的热塑性热熔胶粘剂。天然无毒无公害，可生物分解，可回收利用。
- 原材料来自蔬菜、植物等绿色资源
- 无溶剂、单组份固态
- 无有害物质挥发（如异氰酸脂），低VOC
- 较低的吸水率及较好耐水性能
- 良好的电气绝缘性
- 防火阻燃 UL 94-V0
- 低熔点、低黏度、低注射压力
- 耐高低温（-50℃/+175
- 与多种基材良好粘接性
- 容易保存，24个月保质期
Common feed streams for dimer acid
二聚酸的来源
- Animal 动物
- Castor oil 蓖麻油
- Corn oil 玉米油
- Linseed oil 亚麻油
- Peanut oil 花生油
- Vegetable oil 植物油
- Tall oil 妥尔油
聚酰胺：耐高温
| 产品 | 软化点℃ | 性能温度℃ | 邵氏硬度 |
| TECHNOMELT PA 673 |
182 to 192 | -40 to +140 | 88A |
| TECHNOMELT PA 678 |
187 | -40 to +140 | 88A |
| TECHNOMELT PA 2035 |
195 to 205 | -20 to +150 | D42 |
| TECHNOMELT PA 2302 |
200 to 210 | -20 to +150 | D53 |
| TECHNOMELT PA 676 |
190 | -50 to +140 | A89 |
| TECHNOMELT PA 6839 |
195 | -20 to +140 | A98/D53 |
| TECHNOMELT PA 2384 |
189 | -20 to +175 | D67 |
| TECHNOMELT PA 6812 |
206 to 216 | / | / |
| TECHNOMELT PA 6818 |
206 to 216 | / | / |
| TECHNOMELT PA 2692 |
210 | -40 to +175 | D62 to 72 |
| THERMELT 195 |
200 ±5 | -20 to +150 | D56 |
| THERMELT 892 |
173 ±5 | -20 to +140 | D53 |
| SHUNWEIMELT 105 |
185 to 200 | -20 to +150 | D40 to 48 |
| SHUNWEIMELT 106 |
210 | -20 to +150 | D50 |
| SHUNWEIMELT 200 |
200 to 210 | -40 to +170 | D48 |
| SHUNWEIMELT 8265 |
190 to 210 | -25 to +170 | D40 to 55 |
聚酰胺：优异的粘附力
| 产品 | 软化点℃ | 性能温度℃ | 邵氏硬度 |
| TECHNOMELT PA 633 |
170 to 180 | -40 to +125 | A90 |
| TECHNOMELT PA 638 |
170 to 180 | -40 to +125 | A90 |
| TECHNOMELT PA 652 |
157 to 165 | -40 to +100 | A77 |
| TECHNOMELT PA 657 |
157 | -40 to +100 | A77 |
| TECHNOMELT PA 653 |
160 | -40 to +100 | A77 |
| TECHNOMELT PA 658 |
150 to 165 | -40 to +100 | A77 |
| TECHNOMELT PA 6208 |
155 | -40 to +100 | A82 |
| TECHNOMELT PA 6239 |
133 to 145 | -10 to +120 | |
|
THERMELT |
160 | -40 to +125 | D38 |
| THERMELT 865 |
157 | -55 to +120 | D31 |
| THERMELT 866 |
155 | -25 to 115 | D30 |
| THERMELT 869 |
154 to 166 | -40 to +125 | D39 |
| THERMELT 817R |
170 | -15 to +125 | D49 |
| SHUNWEIMELT 107 |
175 | -40 to +125 | A88 |
| SHUNWEIMELT 108 |
143 | -40 to 100 | A78 |
聚酰胺：硬度提高（通用料）
| 产品 | 软化点℃ | 性能温度℃ | 邵氏硬度 |
| TECHNOMELT PA 641 |
170 to 180 | -40 to +125 | A92 |
| TECHNOMELT PA 646 |
170 to 180 | -40 to +125 | A92 |
| THERMELT 867 |
183 | -40 to 150 | D45 |
| SHUNWEIMELT 190 |
180 to 195 | -40 to 150 | A90 |
| SHUNWEIMELT 101 |
158 to 170 | -40 to 120 | D40 |
聚酰胺：耐溶剂
| 产品 | 软化点℃ | 性能温度℃ | 邵氏硬度 |
| TECHNOMELT PA 2384 |
189 | -20 to +175 | D67 |
| THERMELT 195 |
200 ±5 | -20 to +150 | D56 |
聚酰胺：耐紫外线
| 产品 | 软化点℃ | 性能温度℃ | 邵氏硬度 |
| TECHNOMELT PA 668 |
155 | -25 to +130 | A90 |
| THERMELT 6771 |
185 | -50 to +140 | A90 |
| TECHNOMELT PA 6481 |
170 to 180 | -40 to +130 | A93 |
| TECHNOMELT PA 6344 |
146 | -40 to +100 | A76 |
| THERMELT 858 |
175 to 185 | -40 to +150 | D49 |
| THERMELT 868 |
154 to 166 | -40 to +125 | D39 |
聚酰胺：医用级（已通过ISO 10993测试）
| 产品 | 软化点℃ | 性能温度℃ | 邵氏硬度 |
| LOCTITE PA 6732 Amber |
187 | -40 to +140 | A90 |
| LOCTITE PA 6682 Clear |
155 | -25 to +105 | A90 |
聚酰胺：导热材料
| 产品 | 软化点℃ | 性能温度℃ | 邵氏硬度 |
| TECHNOMELT PA 6773 Grey |
160 | -40 to +130 | D39 |
| THERMELT TC916 Dark grey |
146 | -10 to +130 | D40 |
| THERMELT 93090 Dark grey |
150 | -10 to +133 | D41 |
聚酰胺：透明材料
| 产品 | 软化点℃ | 性能温度℃ | 邵氏硬度 |
| TECHNOMELT PA 668 |
155 | -25 to +105 | A90 |
| TECHNOMELT AS 4226 |
165 | -40 to +85 | D45 |
| THERMELT 868 |
154 to 166 | -40 to +125 | D39 |
聚酰胺：低温注塑
| 产品 | 软化点℃ | 性能温度℃ | 邵氏硬度 |
| SHUNWEIMELT 102 |
130 | -40 to +80 | A86 |
| SHUNWEIMELT 110 |
110 to 120 | / | / |
聚酰胺：胶条 点胶作业
| 产品 | 软化点℃ | 性能温度℃ | 邵氏硬度 |
| THERMELT 865 |
157 | -55 to +120 | D31 |
| THERMELT 866 |
155 | -25 to 115 | D30 |
| THERMELT 870 |
145 | / | D47 |
| SHUNWEIMELT 2103 |
144 | -40 to +125 | A92 |
一站式低压注塑
为满足客户当前和未来需求，
提供创新和可持续低压注塑解决方案！
